A reliable smart home starts in the places you never see - behind switches, inside wall boxes, tucked neatly out of sight. The Shelly 1 Mini Gen4 is made for those hidden spaces. It is a compact dry contact smart switch that turns an ordinary circuit into something you can control precisely, without changing how the room feels to use.
The Mini Gen4 focuses on clean, dependable wiring. It brings live, neutral, switch input and relay contacts into a clear, structured layout so you can see exactly what belongs where. Whether you are retrofitting a light, adding control to a socket, or driving a low voltage contact, the goal is the same, simple, reliable behaviour every time you press a switch or trigger an automation.
This guide walks through the Shelly 1 Mini Gen4 connections in plain language. You will see what each terminal does, how the dry contact behaves, and which types of loads the relay is designed to handle comfortably. The result is a practical reference you can rely on when planning your next Mini Gen4 installation.
The essentials at a glance
At its core, the Shelly 1 Mini Gen4 keeps things simple. Every terminal has a clear role, so once you understand the layout, planning your wiring becomes straightforward. Think of it as three groups of connections working together: power for the device, contacts for the load, and an input for your wall switch.
-
L and N – AC power for the Mini
Live (L) and neutral (N) bring 110 - 240 V AC to the relay itself. These keep the electronics and wireless features running, independent of what you choose to switch on the output side. -
I and O – the potential free relay contacts
I is the relay input, O is the relay output. Together they form a dry contact that simply opens or closes a circuit. You decide what passes through that contact, from mains lighting feeds to low voltage control lines. -
SW – your wall switch or button input
SW listens for presses from a conventional switch or push button. Wire it correctly and you keep the familiar feel of a manual switch, while the Shelly takes care of smart control in the background.
Once you can visualise how L, N, I, O and SW fit together, the Shelly 1 Mini Gen4 connections begin to feel less technical and more like a tidy, predictable toolkit for everyday lighting and load control.

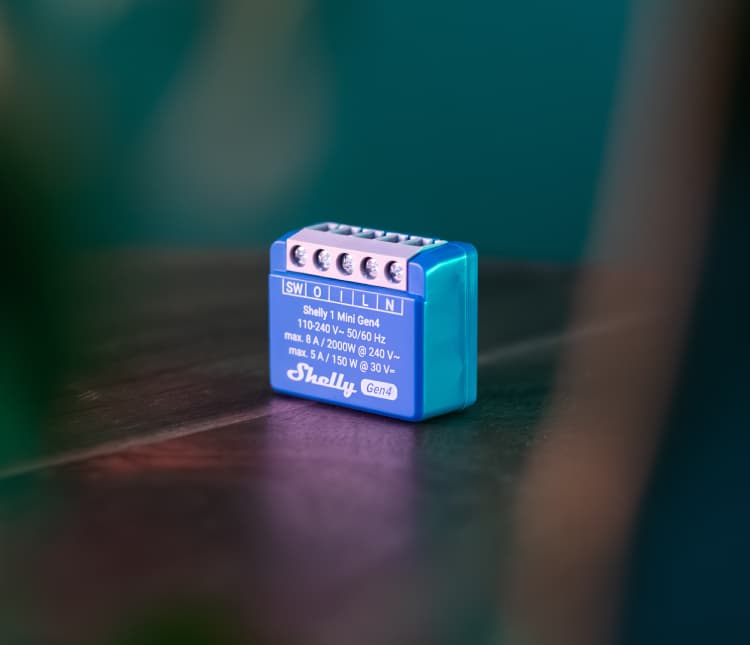

Terminal guide
The Shelly 1 Mini Gen4 keeps its wiring layout intentionally clear. Each terminal serves a single purpose, and once you understand what flows through each one, the whole device becomes easy to work with. Here is a simple, confident breakdown of every connection.
L – live supply
This is the incoming live conductor that powers the Mini Gen4 itself. It feeds the relay’s electronics and ensures the device stays connected to your network, regardless of what you are switching on the output side.
N – neutral supply
The neutral conductor completes the AC supply for the device. The Mini Gen4 requires both live and neutral present in the back box to operate, which helps guarantee stable behaviour and reliable connectivity.
I – relay input
I is where the feed for your controlled circuit enters the relay. This may be the live conductor for a light, a switched line for a small appliance, or a low voltage signal for a gate or door controller.
O – relay output
O is the outgoing side of the relay. When the relay is on, I and O are connected. When it is off, they are fully isolated. The Mini Gen4’s relay is potential free, which means it does not output voltage itself; it simply opens or closes the circuit you pass through it.
SW – switch or button input
SW listens for changes from your physical switch or momentary button. Wire it correctly and you keep the natural feel of manual control, with the Mini Gen4 updating its state instantly in response.
With these five terminals understood, the Shelly 1 Mini Gen4 connections become a neat, predictable structure. Everything has its place, and every place has a clear purpose.
Supported loads and limits
The Mini Gen4 is built to handle everyday switching with confidence. Its relay is sized for the kinds of loads you regularly find in homes and small installations, offering a balance of safety, responsiveness, and long term reliability.
At its core, the device is rated for:
- Up to 8 A at 240 V AC for standard household circuits
- Up to 5 A at 30 V DC when used in low voltage applications
These ratings make it comfortable with a wide range of load types:
- Resistive loads such as incandescent lamps and small heaters
- Capacitive loads including many LED drivers and electronic power supplies
- Inductive loads like fans, small motors, and appliances with transformers
In practice, this means the Mini Gen4 is well suited to lighting circuits, small appliances, and control lines, whether AC or low voltage. Staying within these limits ensures smooth operation and protects both the relay and the connected device over time.
Common wiring scenarios
Most installations fall into a few familiar patterns. Once you understand these, planning your Shelly 1 Mini Gen4 wiring becomes far more intuitive.
Standard light switch control
The most common setup places the Mini Gen4 behind an existing wall switch. Live and neutral power the device, while the light’s live feed passes through I and O. This gives you app control, scheduling, and automations without changing how the switch feels to use.
Keeping your manual switch working
By wiring the wall switch to the SW terminal, the Mini Gen4 recognises every press instantly. The switch behaves exactly as it always has, while the relay updates in perfect sync for reliable manual and smart control side by side.
Dry-contact mode for gates, garage doors, or low voltage
Because the relay is potential free, I and O can be used as a simple contact closure for low voltage systems. This makes the Mini Gen4 ideal for triggering gate controllers, garage door openers, or any circuit that expects a clean, isolated switch.
Installation notes and best practices
Good wiring starts with a few simple principles. The Mini Gen4 is designed to make installation straightforward, and keeping to these basics ensures everything behaves exactly as it should.
Neutral requirement
The device needs both live and neutral to operate. If your switch box does not contain a neutral conductor, the Mini Gen4 should be installed elsewhere in the circuit where both wires are present.
Correct conductor size
The terminals are designed for standard installation cable, and using the recommended conductor sizes ensures a secure, long lasting connection. A clean strip length and firmly tightened screws help maintain stable performance over time.
Safety first
Always isolate the circuit before working, double check wire identification, and take your time with each connection. If anything in the layout feels unfamiliar, a qualified electrician can complete the final steps quickly and safely.
With these basics in place, the Shelly 1 Mini Gen4 connections become dependable, tidy, and ready for years of everyday use.
Quick FAQs
Does the Shelly 1 Mini Gen4 need a neutral?
Yes. The Mini Gen4 requires both live and neutral to power its internal electronics and maintain a stable connection.
Does the relay output power?
No. The relay is potential free, so it does not supply voltage on its own. It simply opens or closes the circuit you route through I and O.
Can it switch low voltage circuits?
Yes. Because the relay is a dry contact, it can switch low voltage control lines up to its 30 V DC rating.
Does it support Zigbee or Matter?
Yes. The Mini Gen4 includes Wi Fi, Bluetooth, Zigbee and Matter support, giving you flexibility with your smart home ecosystem.
Can I keep my existing wall switch?
Absolutely. When connected to the SW terminal, your manual switch continues to work as normal while the Mini Gen4 handles smart control in the background.
Summary
The Shelly 1 Mini Gen4 brings clarity and confidence to smart home wiring. Its compact form, clean terminal layout, and potential free relay make everyday installations feel effortless, whether you are upgrading a light circuit, adding smart control to a socket, or triggering a low voltage system. With support for the latest wireless standards and dependable performance built in, it fits naturally into modern homes and discrete retrofit projects alike.
Keep the wiring simple, stay within the device’s limits, and the Mini Gen4 becomes a quiet, reliable part of your space — one that works in the background, responds instantly, and gives you the kind of control that just feels right.
