Shelly 1 Mini Gen3 WiFi Operated Smart Switch

The Shelly 1 Mini Gen3 is an ultra-compact Wi-Fi smart switch designed for installations where space is limited. Its potential-free, or dry-contact, relay allows compatible lights, appliances and low-voltage circuits to be controlled remotely without replacing the existing wall switch or making significant visible changes to the installation.

Measuring just 29 × 34 × 16 mm, the Shelly 1 Mini Gen3 can be installed inside standard electrical wall boxes, behind compatible light switches and power sockets, or within suitable appliance enclosures. It connects directly to a standard 2.4 GHz Wi-Fi network, so no separate smart-home hub is required.

Users can control the connected circuit through the Shelly Smart Control app, the device's embedded web interface or a compatible home automation platform. It supports local and cloud-based control, schedules, scenes, scripting, webhooks and MQTT, providing flexibility for both straightforward smart switching and more advanced automation.

Technical Specifications

• Power Supply: 110-240 VAC
• Relay Type: Dry, normally open, single-pole contact
• Maximum Switching Current: 8 A at 240 VAC or 5 A at 30 VDC
• Maximum Output Power: 2,000 W at 240 VAC or 150 W at 30 VDC
• Power Consumption: Less than 1.2 W
• Wi-Fi: 2.4 GHz, 802.11 b/g/n
• Bluetooth: Bluetooth 4.2

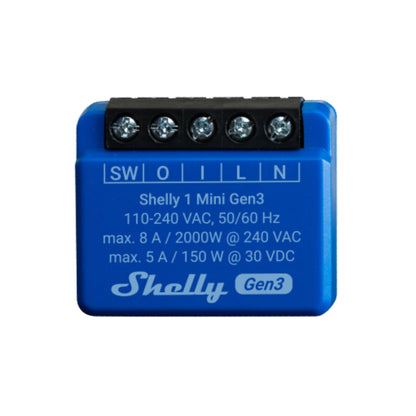

• Terminal Configuration: SW (switch input), O (relay output), I (relay input), L (live) and N (neutral)
• Dimensions: 29 × 34 × 16 mm
• Weight: Approximately 19 g
• Operating Temperature: -20°C to 40°C
• Neutral Required: Yes

Key Features

• Ultra-Compact Design: Fits inside standard electrical wall boxes and other locations where installation space is limited
• Potential-Free Contacts: Allows the relay circuit to remain electrically separate from the device's own power supply
• No Hub Required: Connects directly to an existing 2.4 GHz Wi-Fi network
• Retrofit Compatibility: Adds smart functionality to compatible existing installations without replacing conventional switches
• Remote Control: Control compatible lights, appliances and circuits using a smartphone, tablet, computer or home automation system
• Local and Cloud Operation: Use the device through a local network or remotely through supported cloud services
• Embedded Web Interface: Configure settings and control the device through a standard web browser
• Automation Support: Create schedules, scenes, scripts, webhooks and MQTT-based integrations
• Smart-Home Integration: Compatible with Amazon Alexa, Google Home, Samsung SmartThings and Home Assistant
• Matter Support: Matter compatibility is available after updating to supported firmware
• Wi-Fi Range Extender: Can extend Wi-Fi connectivity for compatible IoT devices
• Bluetooth Gateway: Can connect supported Shelly Bluetooth devices with the wider Shelly ecosystem
• Overheating Protection: Includes an internal temperature sensor for device protection

Use Cases

The Shelly 1 Mini Gen3 is suitable for adding smart control to compatible lighting circuits, fans, small appliances, garage doors, irrigation systems and other electrical equipment within its rated limits. Its compact size makes it particularly useful for retrofitting existing installations where a larger smart relay may not fit.

The dry-contact relay can switch circuits operating at a different voltage from the device's own power supply. It may also be used as a control input for an appropriately rated contactor when working with equipment that exceeds the relay's direct switching capacity.

Installation notice: This product requires a neutral connection. Mains electrical installation should be completed by a suitably qualified person and must follow the manufacturer's instructions and applicable electrical regulations.
