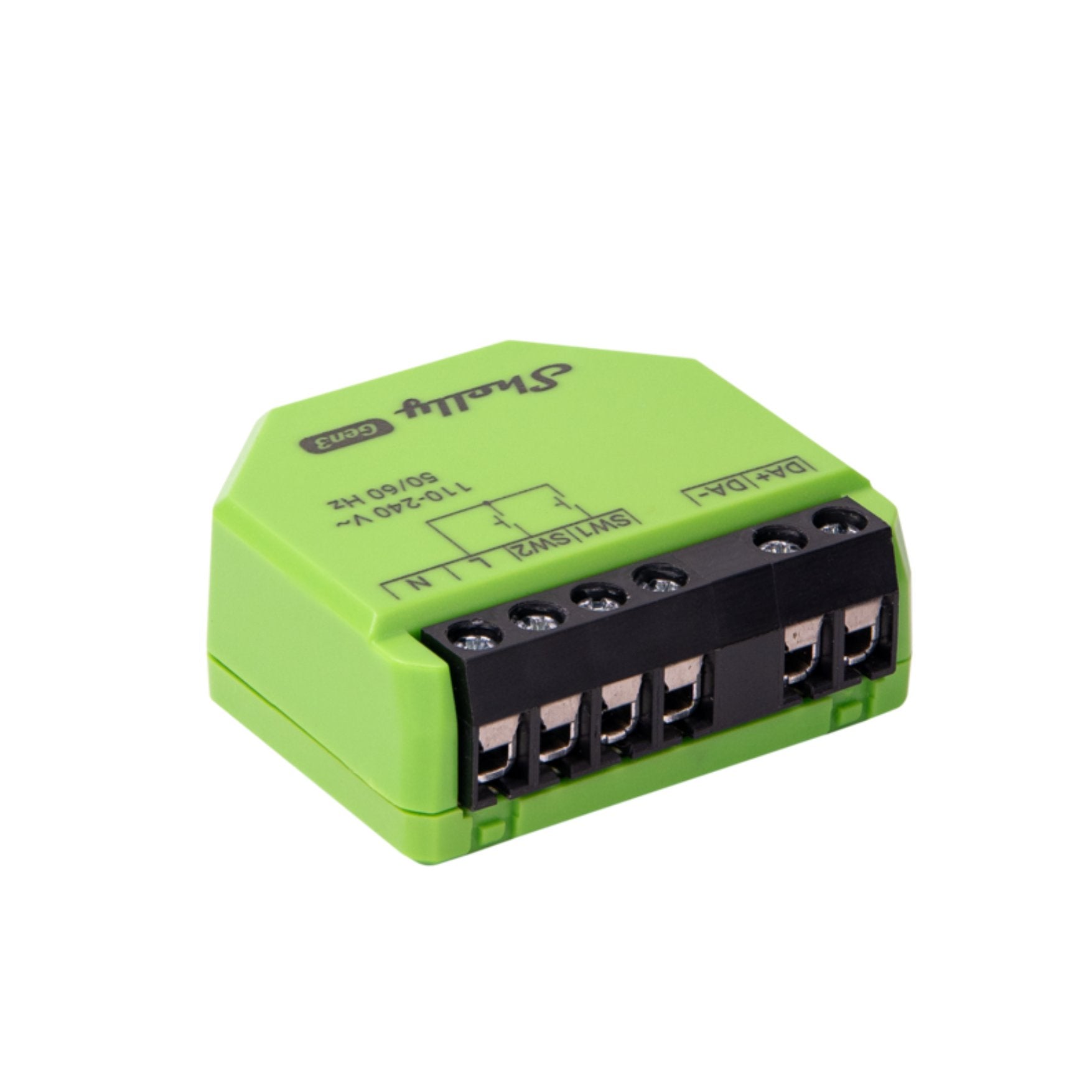

Shelly DALI Dimmer Gen3 WiFi Operated Smart Relay

The SHELLY-DALI-DIMMER-GEN3 represents the third generation of advanced DALI lighting control from Shelly, engineered for seamless integration into modern smart building infrastructures. This compact device enables sophisticated dimming and control of DALI-2 compliant lighting fixtures, offering both wireless and wired connectivity options for maximum flexibility. Its design facilitates installation in confined spaces such as in-wall enclosures or suspended ceilings, making it an ideal solution for retrofitting existing lighting systems or deploying in new construction projects.

With support for KNX integration via KNXnet/IP communication, the device bridges the gap between DALI lighting networks and comprehensive building management systems. This allows for centralised monitoring and control alongside other building functions. The inclusion of Wi-Fi and Bluetooth connectivity provides alternative local control methods, while the powerful internal processor supports advanced automation features including scripting, scheduling, and real-time notifications through webhooks.

Technical Specifications

• Dimensions: 42×37×17 mm / 1.65×1.46×0.66 inches
• Weight: 18 g / 0.63 ounces
• Screw Terminal Torque: 0.4 Nm / 3.5 lb-in maximum
• Conductor Cross Section: 0.2 to 2.5 mm² / 24 to 14 AWG (suitable for solid, stranded, and bootlace ferrule conductors)
• Conductor Stripped Length: 6 to 7 mm / 0.24 to 0.28 inches
• Mounting Options: In-wall installation, suspended ceilings
• Enclosure Material: Plastic construction in green colour
• Ambient Operating Temperature: -20°C to 40°C / -5°F to 105°F
• Humidity Range: 30% to 70% relative humidity
• Maximum Altitude: 2000 metres / 6562 feet
• Power Supply: 110-240 V ±10%, 50/60Hz
• Power Consumption: Less than 2 watts
• Neutral Connection: Not required
• Bus Power Supply: Guaranteed 10mA (supports up to 5 DALI control gear units), short circuit current less than 35 mA
• Bus Voltage: 16V nominal
• Internal Temperature Sensor: Included

Key Features

• Extended Integration: Comprehensive KNX support with KNXnet/IP communication protocol for building automation systems
• Wireless Connectivity: Dual-band Wi-Fi (802.11 b/g/n) and Bluetooth 4.2 for flexible control options
• Advanced Processing: ESP-Shelly-C38F CPU with 8MB flash memory for complex automation tasks
• Programming Capabilities: Full scripting support and 20 webhooks with 5 URLs per hook for custom automation
• Protocol Support: MQTT compatibility for IoT integration and TLS 1.2 encryption for secure communications
• Installation Flexibility: Compact design suitable for space-constrained applications without neutral wire requirement

Use Cases

The SHELLY-DALI-DIMMER-GEN3 is particularly suited for commercial lighting applications where integration with building management systems is essential. Its KNX compatibility makes it ideal for office buildings, hotels, and educational institutions requiring centralised lighting control. The device's compact dimensions and wireless capabilities also make it valuable for retrofit projects in historical buildings where preserving architectural integrity is important while upgrading to energy-efficient LED lighting with dimming functionality.
