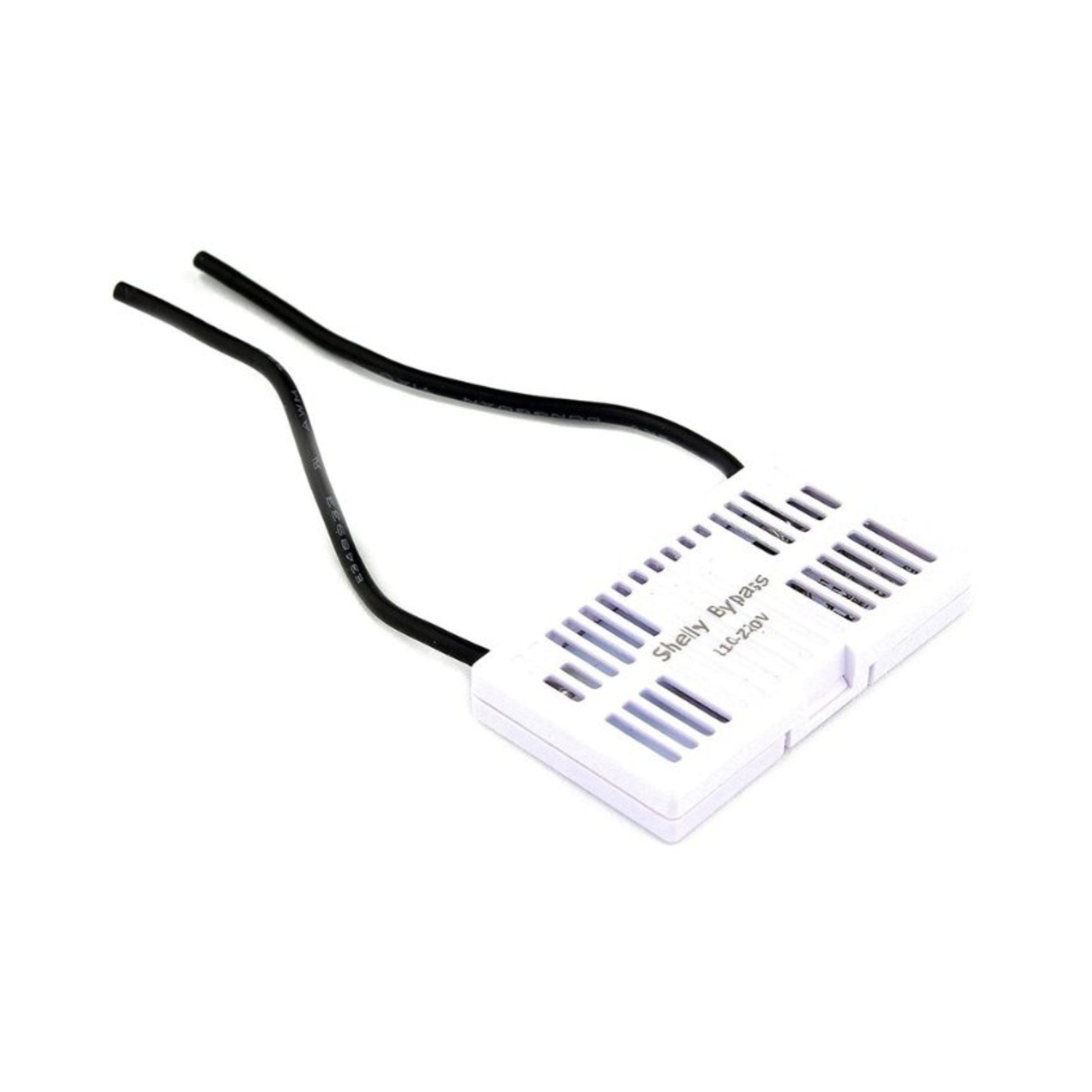

Shelly Bypass Module for Installations without Neutral Wire

The Shelly Bypass is an essential electrical component designed to ensure the reliable operation of smart switching devices in lighting control systems. It addresses the common challenge of minimum load requirements, particularly when using LED or low-energy lighting with advanced controllers. By providing a stable current path, this device prevents flickering, buzzing, or complete failure of connected lighting fixtures.

Engineered for seamless integration into existing electrical installations, the Shelly Bypass maintains system stability while enabling full smart control functionality. Its compact design allows for straightforward installation within standard electrical enclosures, making it suitable for both residential and commercial applications where modern lighting control is implemented.

Technical Specifications

• Power Supply: 230V AC, 50/60Hz
• Maximum Power: 50W
• Connection Type: Screw terminals
• Operating Temperature: -20°C to +60°C
• Protection Class: IP20
• Dimensions: 42mm x 38mm x 21mm
• Colour: White

Key Features

• Minimum Load Solution: Eliminates flickering and ensures stable operation of LED lighting systems
• Parallel Connection: Simple installation alongside existing lighting loads
• Compact Design: Space-efficient form factor suitable for confined electrical enclosures
• Safety Compliant: Manufactured in accordance with relevant electrical safety standards
• Universal Compatibility: Works with various smart switching systems and lighting types

Use Cases

The Shelly Bypass finds particular utility in modern lighting installations where traditional bulbs have been replaced with energy-efficient alternatives. It's essential in scenarios involving smart switches controlling multiple LED fixtures, especially when individual light loads fall below the minimum requirement of the controlling device. Commercial lighting systems with numerous low-wattage LED downlights benefit significantly from this solution, as do residential properties where homeowners have upgraded to smart lighting control throughout their property. The device ensures consistent performance in both new installations and retrofit projects where maintaining existing wiring configurations is preferable.
